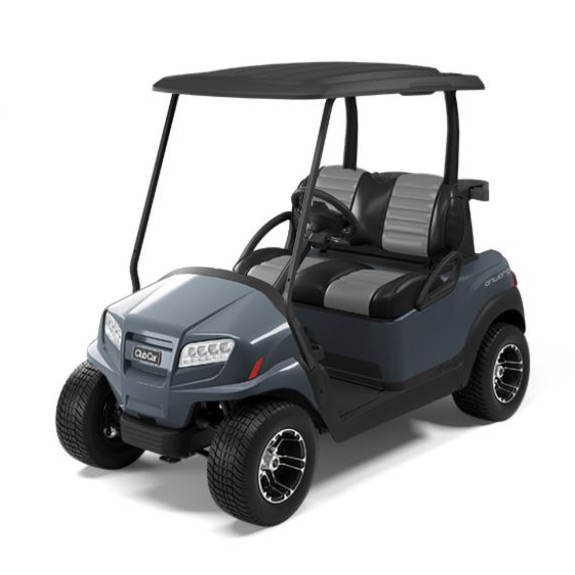

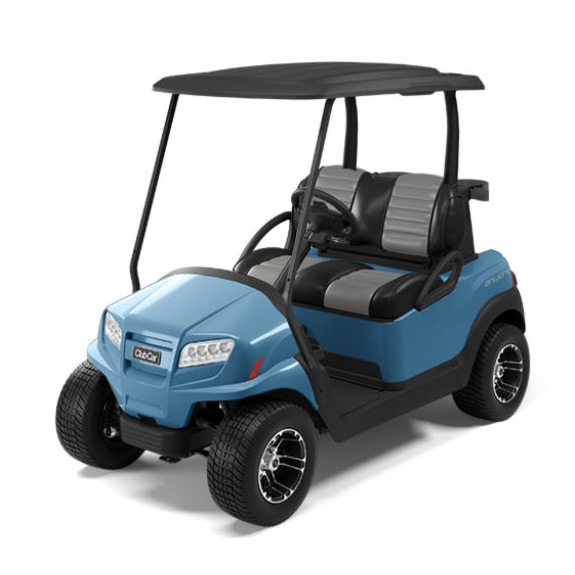

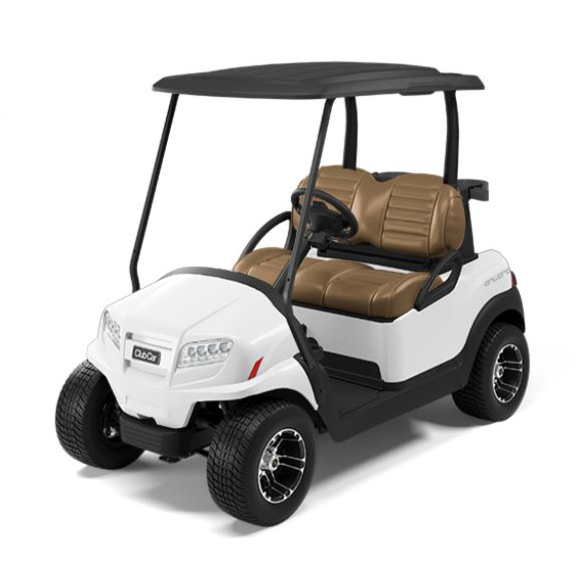

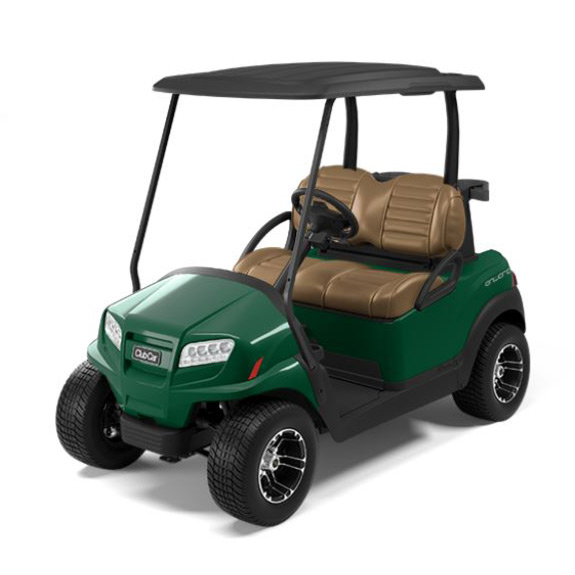

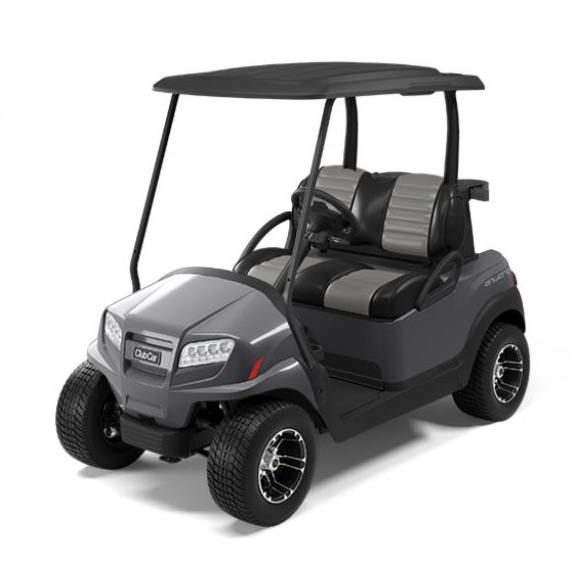

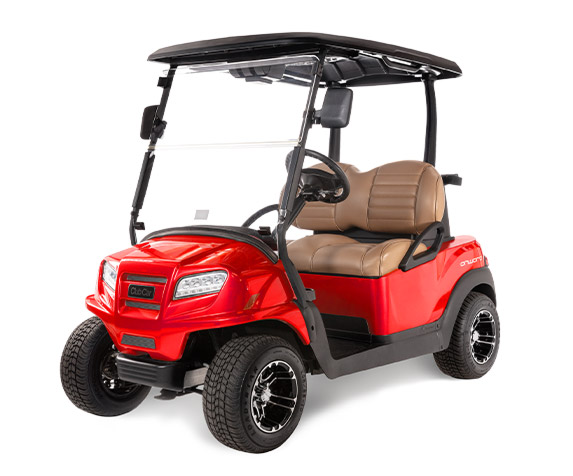

PARA 2 PASSAGEIROS

Eleve o estilo e o conforto na estrada ou fora dela. Disponível em modelos a gasolina e elétricos.

REALMENTE PESSOAL

O Onward® é o único veículo de transporte pessoal com amplas opções de personalização integradas.

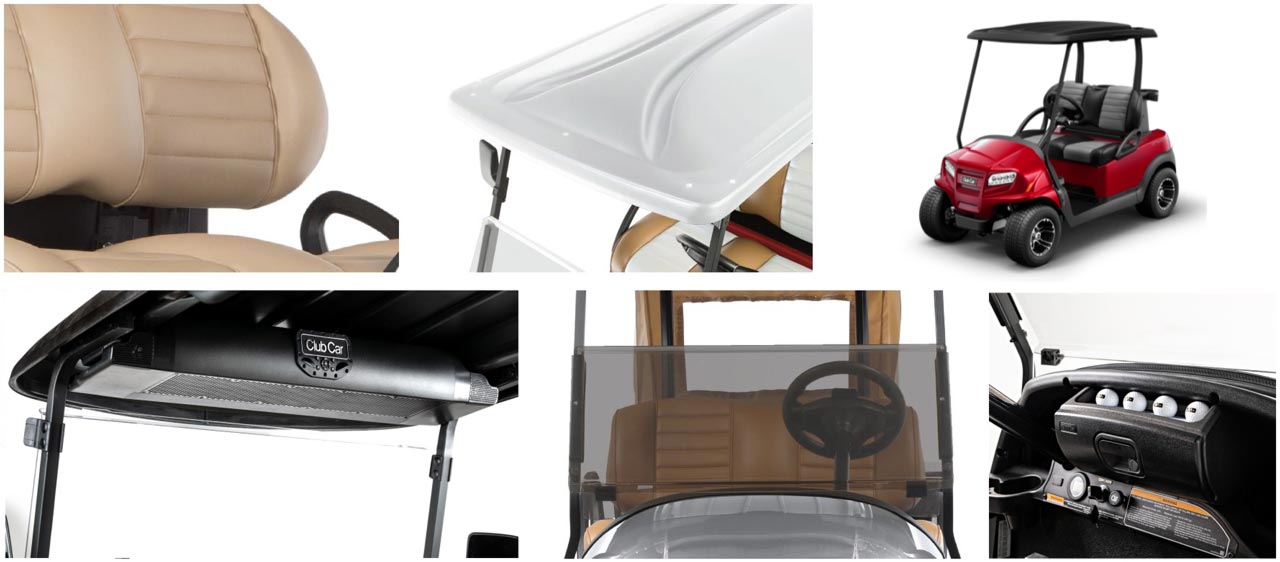

Desde rodas e bancos até cores e acessórios, monte seu carro de golfe elétrico ou a gasolina de acordo com o seu estilo e chame a atenção enquanto se diverte.

Montar

ESPECIFICAÇÕES

ONWARD PARA 2 PASSAGEIROS

MSRP* A PARTIR DE

$7.599

Potência

	ELECTRIC	HP	HP LITHIUM	GAS

Motor/ Engine	250 Amp DC Motor Controller	375 Amp AC Motor Controller	375 Amp AC Motor Controller	429 cc Kohler, Overhead Valve (OHV) with EFI

Horsepower	3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW)	22.4 hp (16.5 kW) Peak	29 hp (21.4 kW) Peak	14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940

Batteries	(6) 8-volt	(6) 8-volt	58V Lithium-Ion (1)	12-volt (1)

Charger	E.R.I.C. Automatic, 48-volt; UL, CSA listed	E.R.I.C. Automatic, 48-volt; UL, CSA listed	48V 650W HF Li-Ion (Shelf / onboard); 48V 900W HF Li-Ion (Shelf only)	N/A

Max. Speed	19 mph (30 kph)	19 mph (30 kph)	19 mph (30 kph)	19 mph (30 kph)

Fuel Capacity	N/A	N/A	N/A	6.0 gal (22.7 L)

Direção e suspensão

	ELECTRIC/ HP/ HP LITHIUM	GAS

Steering	Self-compensating double reduction helical rack & pinion	Self-compensating double reduction helical rack & pinion

Front Suspension	Independent leaf spring w/dual hydraulic shocks	Independent leaf spring w/dual hydraulic shocks

Freios

	ELECTRIC/ HP/ HP LITHIUM	GAS

Brakes	Self-adjusting, rear-wheel mechanical drum	Self-adjusting, rear-wheel mechanical drum

Park Brake	Foot actuated, 3-position	Foot actuated, 3-position

Carroceria e pneus

	ELECTRIC/ HP/ HP LITHIUM	GAS

Body and Finish	Front: Painted TPO; Rear: Painted Surlyn	Front: Painted TPO; Rear: Painted Surlyn

Tires	205 x 55 - 10 Tubeless	205 x 55 - 10 Tubeless

LxWxH	92 x 48 3/4 x 71 inches	92 x 48 3/4 x 71 inches

Wheelbase	65 1/2 inches	65 1/2 inches

Ground Clearance	4 1/2 inches	4 1/2 inches

Tread-Front and Rear	Front/Rear: 36/40 inches	Front/Rear: 36/40 inches

Total Vehicle Weight	975 lb/ 975 lb / 717 lb	675 lb

Frame Type	AlumiCore™ — Ladder-style aluminum box beam	AlumiCore™ — Ladder-style aluminum box beam
