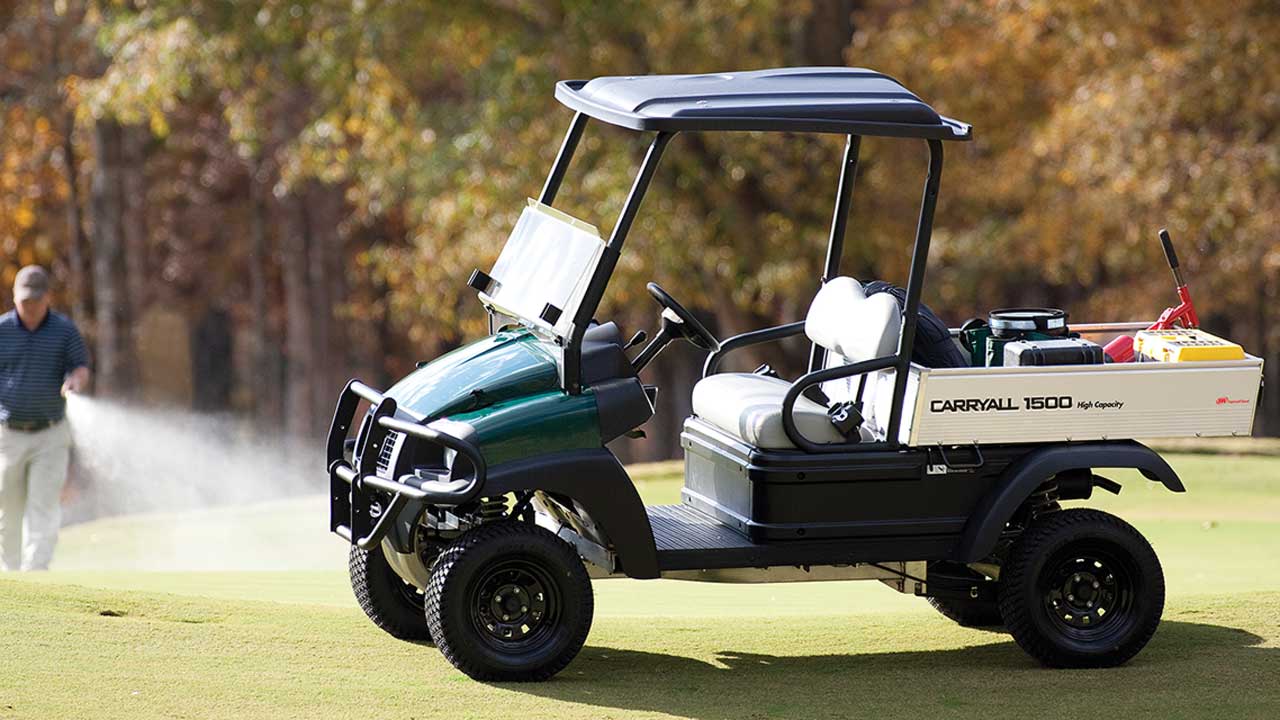

CARRYALL 1500 TURF UTILITY VEHICLE

Works hard on jobs, not turf.

THE GENTLE GIANT

Call on the Carryall 1500 2WD for the heavy-duty jobs when you still need to tread lightly and protect your course.

Enjoy some of the highest ground clearance, steady handling on rough terrain, and upgradeable load capabilities up to 3/4 of a ton.

SPECIFICATIONS

Power

	GAS
Engine	Kawasaki 4-cycle, industrial grade

Horsepower	20.1 hp (14.99 kW) rated @ 3,400 rpm per SAE J1940

Maximum Torque	36.5 ft-lb (49.5 Nm)

Battery	One (1) 12V, 500 CCA, 105 min reserve

Max Speed	19 mph (30.6 kph)

Fuel Tank Capacity	6.5 gal (24.6 L)

Steering & Suspension

	GAS
Steering	Rack and pinion with tilt steering

Front Suspension	Independent double A-arms with coil-over shocks

Turning Radius	150.5 in. (382.3 cm)

Differential Ground Clearance	7.3 in. (18.5 cm)

Body & Tires

	GAS
Body & Finish	GE Geloy high impact, scratch-resistent, injection-molded color, automotive finish

Tires	4-ply turf, 23 x 10.5 - 12 (Front) 4-ply turf, 24 x 10.5 - 12 (Rear)

Wheelbase	88.7 in (225.3 cm)

Tread	48.8 in (124 cm)

Frame	Tubular aluminum

Dimensions & Weights

	GAS
Overall Length:	124.6 in. (316.5 cm)

Overall Height:	58,5 in. (148.5cm)

Wheelbase:	88.7 in. (225.3 cm)

Curb Weight:	1,410 lbs (639.57 kg)

Bed LxWxH:	48.8 x 49.8 x 10.9 in (124 x 126.5 x 27.7 cm)

Bed Load Capacity:	1,050 lbs. (476.3 kg) - standard 1,500 lbs. (658 kg) - 3/4 ton option

Towing Capacity:	1,450 lbs (658 kg) - standard 1,900 lbs. (862 kg) - 3/4 ton option

Get your Carryall 1500 2WD information.

Ask a question, or purchase a Carryall 1500 Turf.

THE TOUGHEST ON TURF

Take on any job and still protect your course.

Ready to take the tough terrain, the 550 Turf is the go-anywhere, do-anything vehicle ready to take charge.

HEAVY-DUTY HANDLING

This vehicle is ready to work with extra cargo space and capacity.

Customize your fleet with the right accessories, ensuring everyone has what they need.
