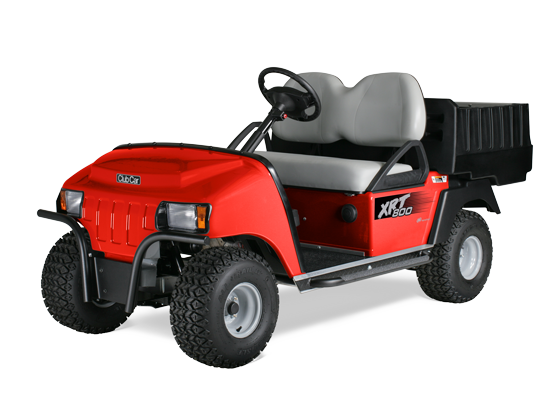

XRT800

No vehicle in its class has a better range or warranty.


COMPACT SIZE

Our rugged XRT series is known for going places other vehicles can't – from narrow trails to tight turns. And that includes the bed of a full-size pickup truck.

Whether you're taking your XRT out to the woods or to a job across town, just load it up and go. It's ready for whatever trail you take.

LIMITED SLIP DIFFERENTIAL

Utility vehicles used in hunting or work applications often cover wet, hilly and rough terrain, but this can cause problems with traction and steering for many two-wheel drive models. It can also damage lawns when the vehicles are used on grass.

That’s not the case with Club Car’s XRT800 utility vehicle. They are available from the factory with an optional automatic limited slip differential. The automotive-style limited slip differential operates differently, and more effectively, than either locking or open differentials.

SPECIFICATIONS

XRT800

US MSRP STARTING AT

$6,250

  • Power
      ELECTRIC
    Engine
    N/A

    Horsepower 3.3 hp (2.5 kW) rated continuous;
    13 hp (9.7 kW) rated peak motor

    Batteries
    48-volt DC, reduced-speed reverse

    Charger
    N/A

    Speed Range
    Up to 17 mph (27 kph)


      GASOLINE
    Engine
    429 cc Kohler, Overhead Cam with EFI

    Horsepower 14.0 hp (10.3 kW) rated,
    @ 3600 RPM per SAE J1940

    Batteries
    12-volt, 500 cca

    Charger
    N/A

    Speed Range
    15-17 mph (24-27 km/h)


  • Steering & Suspension
      ELECTRIC
    Steering
    Self-adjusting rack and pinion

    Front/Rear Suspension
    Tapered mono-leaf springs
    with dual hydraulic shocks
      GASOLINE
    Steering
    Self-adjusting rack and pinion

    Front/Rear Suspension
    Tapered mono-leaf springs
    with dual hydraulic shocks
  • Brakes
      ELECTRIC
    Brakes
    Dual rear wheel self-adjusting
    with cast-iron drums, single brake pedal

    Park Brake
    Automatic-release park brake
      GASOLINE
    Brakes
    Dual rear wheel self-adjusting
    with cast-iron drums, single brake pedal

    Park Brake Automatic-release park brake
  • Body & Tires
      ELECTRIC
    Body and Finish
    N/A

    Tires 20 x 10 - 8 in (508 x 254 - 203 mm)
    tubeless, four-ply rated

    LxWxH
    100 x 45 x 47 in (255 x 114 x 119 cm)

    Wheelbase
    67 in (171 cm)

    Ground Clearance
    5 in (13 cm)

    Tread-Front and Rear
    Front 35 in (88 cm)
    Rear 39 in (98 cm)

    Total Vehicle Weight
    874 lb (396 kg)

    Frame Type
    Twin I-beam welded aluminum


      GASOLINE
    Body and Finish
    N/A

    Tires 20 x 10 - 8 in (508 x 254 - 203 mm)
    tubeless, four-ply rated

    LxWxH
    100 x 45 x 47 in (255 x 114 x 119 cm)

    Wheelbase
    67 in (171 cm)

    Ground Clearance
    5 in (13 cm)

    Tread-Front and Rear
    Front 35 in (88 cm)
    Rear 39 in (98 cm)

    Total Vehicle Weight
    781 lb (354 kg)

    Frame Type
    Twin I-beam welded aluminum


  • Other
      ELECTRIC

    Fuel Tank Capacity

    Dash Intrumentation

    Halogen Headlights

    Payload Capacity

    Vehicle Capacity

    Seating

    N/A

    Low-battery warning indicator

    Yes

    300 lb (136 kg)

    800 lb (363 kg)

    2

      GASOLINE

    Fuel Tank Capacity

    Dash Intrumentation

    Halogen Headlights

    Payload Capacity

    Vehicle Capacity

    Seating

    4.6 gal (17.4 L) with EFI

    Fuel gauge / Hour meter

    Yes

    300 lb (136 kg)

    800 lb (363 kg)

    2
