The Club Car Urban is available in 2 versions: XR non street legal and LSV street legal which includes 3-pt seatbelts, mirrors, tail lights, brake lights, turn signals, and a horn, plus an in-dash storage compartment and backup camera system.

Features

Driven by excellence, committed to your safety.

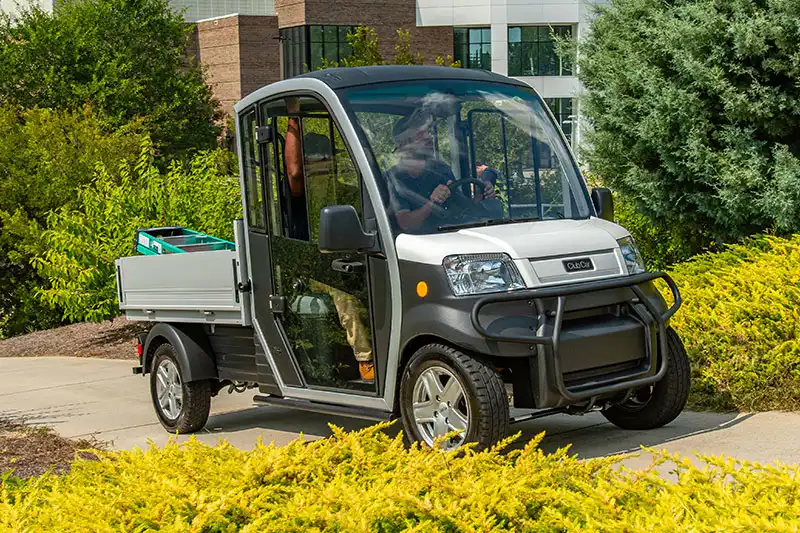

Meet Club Car's new lineup of electric utility vehicles. Efficient, safe and green, Club Car Urban vehicles integrate form and function into eco-friendly, crash-tested vehicles that help you to get the job done. Embrace comfort for long days on the road by driving a compact design with agile handling to navigate tight spaces while carrying a payload of up to 2204 lbs.

What Sets the Urban Apart From the Rest?

With a variety of power options, a wide range of uses on and off the street, to vehicle replacement and a fully customized configuration, the Club Car Urban is in a class of its own. Different options allow the user to tailor the Urban to their specific needs. Multiple bed configurations are easy to order and come prepped and ready to go. Storage options are wide ranging and versatile to accommodate a wide variety of different sized goods.



AVAILABLE CARGO OPTIONS

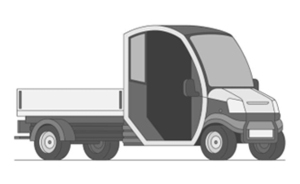

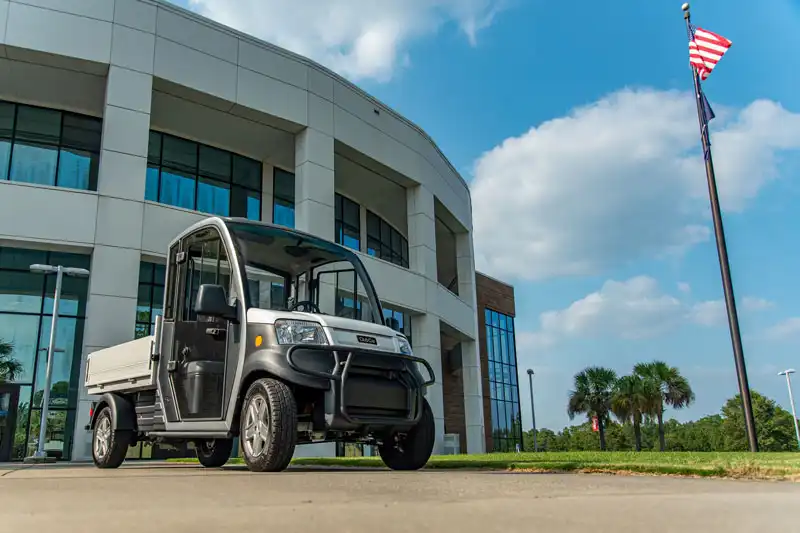

Pickup Bed (3 Size Options)

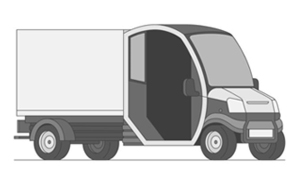

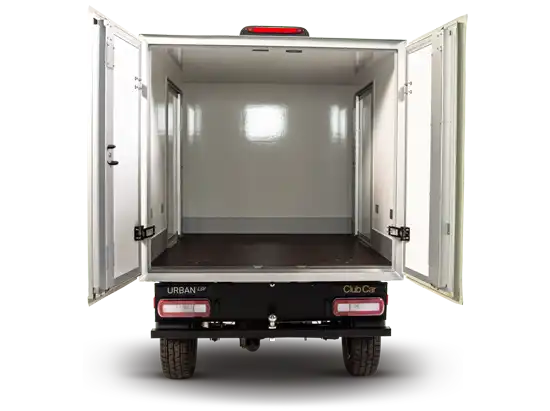

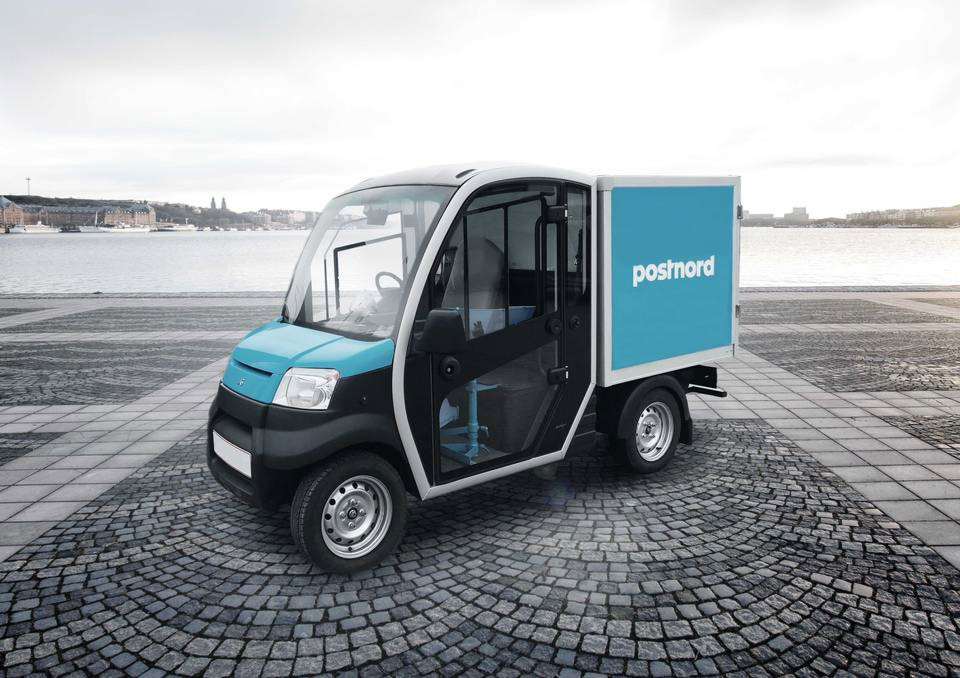

Van Box (2 Size Options)

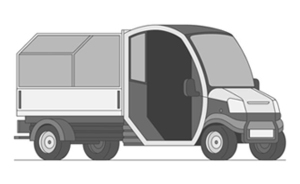

Pickup Bed with Mesh Cage (2 Size Options)

Club Car Urban  XR (Non Street Legal) and Urban LSV (Street Legal) Configurations


Standard Features
(both XR and LSV Models)



  • All Season Road Tires

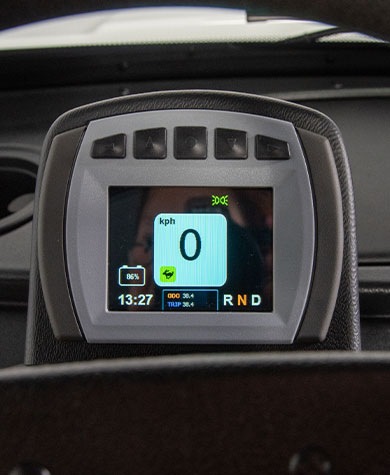

  • Premium Instrument Cluster
  • Left Hand Drive
  • Headlights
  • Rear Lights
  • Horn
  • Bench Seat

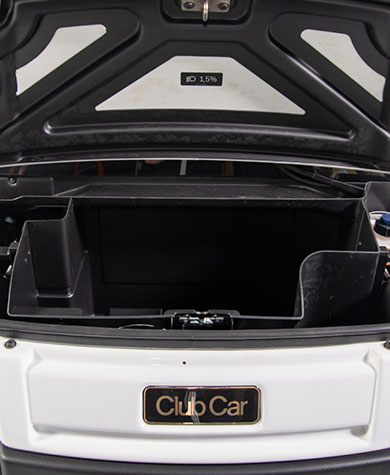

  • Secure Storage Locker

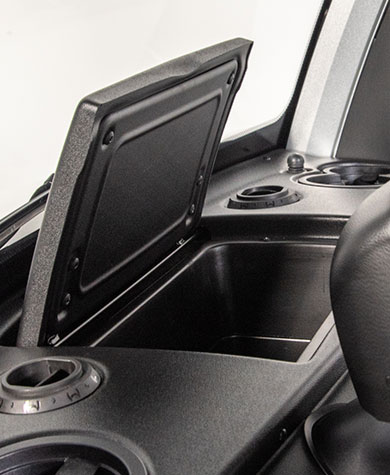

  • Dash Storage Compartment
  • Safety Cab
  • Automatic Parking Brake

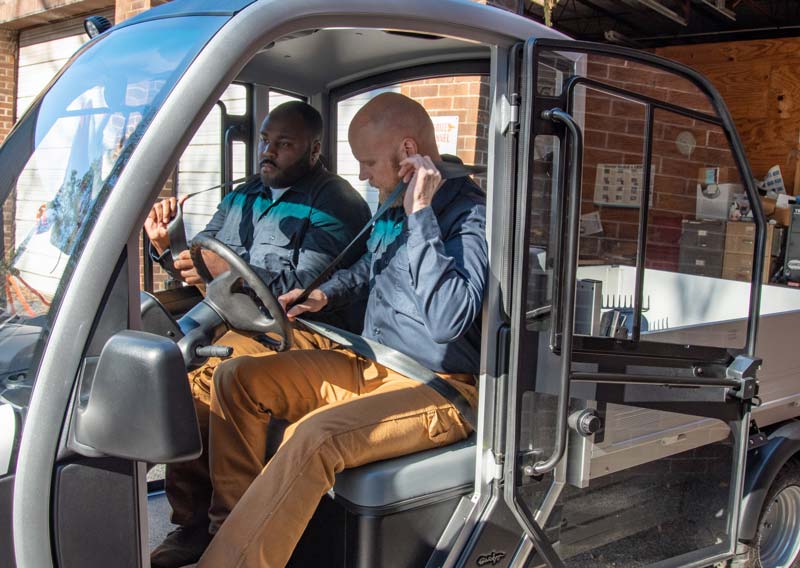

  • 3-Point Seat Belts
  • Reverse Buzzer
  • Speed Switch
  • White color
  • Rear Bumper

LSV Standard Features
(LSV Only)

< All of this PLUS

  • Deluxe Cab Pack
  • Rear Bulkhead Glass
  • Heated Windscreen
  • Wash / Wipe Pack
  • AVAS System
  • Reverse Camera

Additional Options


< Choose XR or LSV & ADD

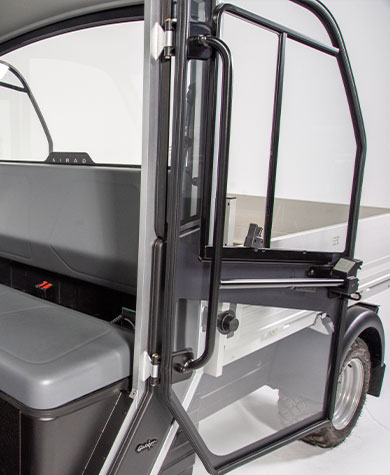

  • Cabin Doors
  • Wide Body Kit with Turf Tires
  • Wide Body Kit with Rough Terrain Tires
  • Auxiliary Lighting Socket and Tow Ball
  • Tow Ball Only
  • Adjustable Twin seats

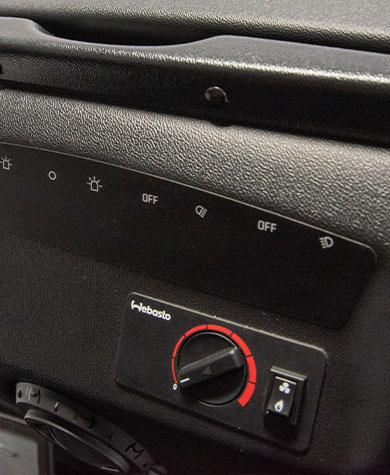

  • Electric Cab Heater

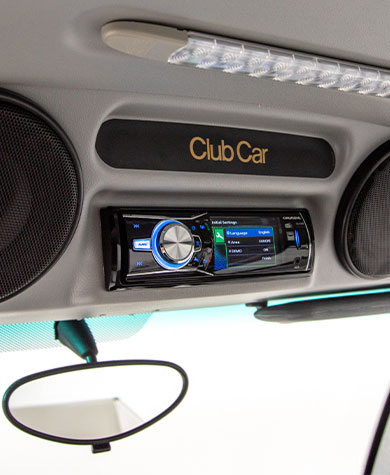

  • DAB Bluetooth Stereo
  • Power Steeting
  • Refrigerator
  • Flashing LED Beacons
  • Work Light (Front)
  • Work Light (Rear)
  • First Aid Kit with Bracket
  • Fire Extinguisher with Bracket
  • Brush Guard

Specifications



CLUB CAR Urban

US MSRP STARTING AT

$25,293

  • Dimensions
       XR  LSV
    Length:
     143 in   143 in

    Width (w/ w.o. mirrors):    69 in / 54 in   69 in / 54 in

    Height:  74 in 74 in

    Wheelbase: 108 in 108 in

    Load bed length:       64 in 64 in

  • Performance
       XR  LSV
    Top Speed:  19 mph   25 mph

    Turning Radius:  168 in  168 in

    Operating grade:   < 20%  < 20%
  • Equipment
       XR   LSV
    Backup Camera:  Optional  Standard

    Hydraulic brake system:
     Disc front, Drums rear  Disc front, Drums rear

    Electronic Parking Brake:  Standard  Standard

    Complete exterior light package:   Standard  Standard

    Chassis:   Steel, Hot Dip Galvanized  Steel, Hot Dip Galvanized

     Tires:   165/70 R13  165/70 R13

    Electric or Diesel Cabin Heater:  Optional Optional

  • Motor
       XR   LSV
    Motor 48V:  High efficient 3-phase AC engine  High efficient 3-phase AC engine

    Continuous power (60 min):  8 kW / 10.7Hp  8 kW / 10.7Hp

    Peak power:  14.3 kW / 19.2 Hp  14.3 kW / 19.2 Hp

    Motor controller:   Curtis 350 A  Curtis 350 A

  • Bed Options

    Pickup Bed:
    Fixed or Tilt Pickup (1.6m) = 50.04 in W x 65.87 in L x 17.72 in H
      Fixed (2.1m) = 50.04 in W x 85.63 in L x 17.72 in H

    Van Box: Fixed Van Box (2.1m) = 51.18 in W x 64.96 in L x 46.85 in H
      Fixed (2.8m) = 51.18 in W x 85.24 in L x 46.85 in H

    Pickup with Mesh Cage:  Fixed (1.6m) = 50.04 in W x 65.87 in L x 73.9 in H
      Fixed (2.1m) = 50.04 in W x 85.63 in L x 73.9 in H
  • Batteries
       XR    LSV
    Standard Battery:  FLA T145 Heavy Duty   FLA T145 Heavy Duty

     Lithium Battery Options:  9.2kWh / 180ah  9.2kWh / 180ah
       10.2kWh / 200ah (with Heating Blanket)   10.2kWh / 200ah (with Heating Blanket)
       12.2kWh / 240ah  12.2kWh / 240ah

    Range (lithium 12.2kWh):  Up to 62 miles  Up to 62 miles

  • Warranty
      XR  LSV
    Vehicle frame:   5 years 5 years

    Suspension and equipment:   3 years 3 years

    Trojan FLA batteries:  3 years  3 years

    9kwh or 12 kwh lithium batteries:  5 years 5 years

    10 kwh lithium battery with warming blanket (cold climates):  4 years 4 years

  • What is a Low Speed Vehicle (LSV)?
    SAFETY STANDARDS OF CLUB CAR LSV’S

    The Urban LSVs come standard with street legal safety and cab features such as 3-pt seatbelts, head and tail lights, mirrors, backup camera system, AVAS, windshield wipers, heated windscreen, rear bulkhead glass, automatic park brake, speed switch, premium instrument cluster, and lockable storage.

    All LSV vehicles must meet all U.S. federal safety standards (FMVSS 500) which require a registered VIN number, automotive safety windshield glass, safety belts, turn signals, headlamps, brake lights, horn, mirrors, reflex reflectors, a parking brake and a rear view camera. They also must meet state and local laws which can include windshield wipers and warning beacons.

    In addition to federal, local and state laws the Society of Automotive Engineers created a voluntary industry standard for LSVs with SAEJ2358 LSV. This voluntary safety standard includes additional detailed requirements.

    Club Car LSVs meet not only FMVSS500 LSV standards but also fully comply with the more stringent automotive SAEJ2358 standards with the inclusion of Occupant Protective Structures on all cars.

Find a Dealer

Please verify that the address that you've entered is correct.

Find a Dealer

Club Car Black & Gold dealers have reached high standards of customer service and sales, and are indicated by this logo next to their name.

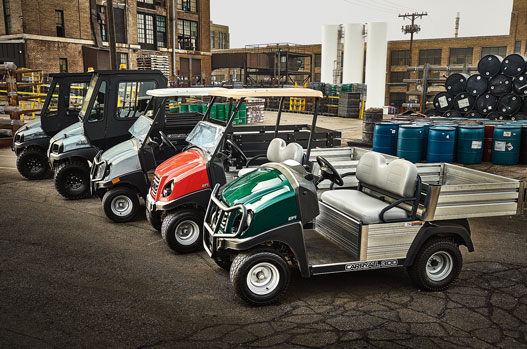

OTHER UTILITY VEHICLES

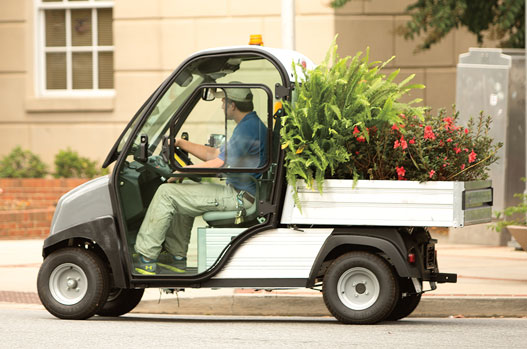

Carryall 510 education
