THE GENTLE GIANT

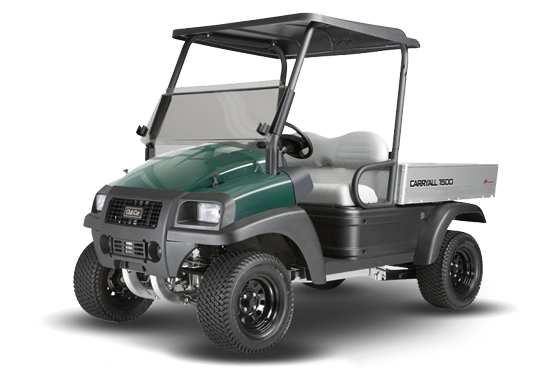

Call on the Carryall 1500 2WD for the heavy-duty jobs when you still need to tread lightly and protect your course.
Enjoy some of the highest ground clearance, steady handling on rough terrain, and upgradeable load capabilities up to 3/4 of a ton.
Kawasaki 4-cycle, industrial grade Horsepower 20.1 hp (14.99 kW) rated @
3,400 rpm per SAE J1940
Maximum Torque 36.5 ft-lb (49.5 Nm) Battery One (1) 12V, 500 CCA, 105 min reserve Max Speed
19 mph (30.6 kph) Fuel Tank Capacity 6.5 gal (24.6 L)
Steering & Suspension
Rack and pinion with tilt steering Front Suspension Independent double A-arms with coil-over shocks Turning Radius 150.5 in. (382.3 cm) Differential Ground Clearance 7.3 in. (18.5 cm)
4-wheel, hydraulic disc Park Brake Automotive style
Body & Tires
GAS Body & Finish
GE Geloy high impact, scratch-resistent,
injection-molded color, automotive finish
4-ply turf, 23 x 10.5 - 12 (Front)
4-ply turf, 24 x 10.5 - 12 (Rear)
88.7 in (225.3 cm) Tread
48.8 in (124 cm) Frame Tubular aluminum
Dimensions & Weights
GAS Overall Length: 124.6 in. (316.5 cm) Overall Height: 58,5 in. (148.5cm) Wheelbase: 88.7 in. (225.3 cm)
Curb Weight: 1,410 lbs (639.57 kg)
Bed LxWxH: 48.8 x 49.8 x 10.9 in
(124 x 126.5 x 27.7 cm)
Bed Load Capacity: 1,050 lbs. (476.3 kg) - standard
1,500 lbs. (658 kg) - 3/4 ton option
Towing Capacity: 1,450 lbs (658 kg) - standard
1,900 lbs. (862 kg) - 3/4 ton option
GAS Vehicle: 2-year or 2,000-hour limited warranty
THE TOUGHEST ON TURF
Take on any job and still protect your course.
Ready to take the tough terrain, the 550 Turf is the go-anywhere, do-anything vehicle ready to take charge.
This vehicle is ready to work with extra cargo space and capacity.
Customize your fleet with the right accessories, ensuring everyone has what they need.
