OUR MOST VERSATILE UTILITY VEHICLE

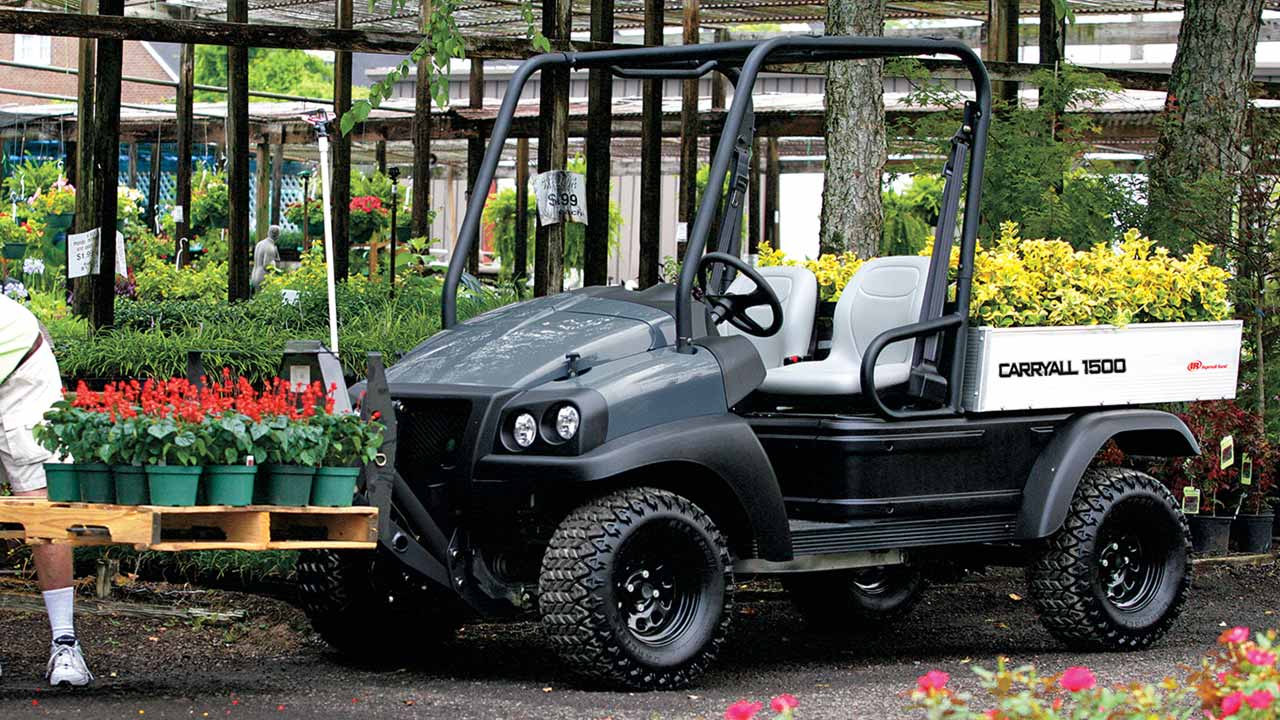

A diesel-powered UTV with Club Car's IntelliTach™ quick-change hydraulic tool attachment system, the Carryall 1500 4WD with IntelliTach is always ready for the next job.

Temporarily unavailable. See dealer for details.

VERSATILITY PLUS

This diesel work utility vehicle comes with the same automatic four-wheel drive system as our Carryall 1500 utility vehicle, plus Club Car’s exclusive IntelliTach quick-change hydraulic tool attachment system that lets you move the attachment up and down and tilt it forward and backward.

The system comes standard with a bucket attachment and accommodates an optional pallet fork, plow blade, and auxiliary hydraulics for added movement.

SPECIFICATIONS

CARRYALL 1500
WITH INTELLITACH

US MSRP STARTING AT

$19,079

  • Power
      DIESEL
    Engine:
    Kubota D722, industrial grade

    Horsepower: 20.0 hp (15.0 kW) rated @ 3600 RPM per SAE J1995

    Batteries: 12V, 500 CCA, 80 min Reserve

    Speed:  25 mph (40 kph)

    Fuel Capacity:       6.5 gal (24.6 L)

    Drivetrain: IntelliTrackTM automatic 4x4
  • Steering & Suspension
      DIESEL
    Steering:
    Rack and pinion with Tilt Steering

    Front Suspension: Independent double A-arms with coil-over shocks

    Rear Suspension: Semi-independent, 4-link solid axle

    Turning Radius: 11.5 feet (3.5 m)
  • Brakes
      DIESEL
    Front Brakes:
    Twin piston, hydraulic disc

    Rear Brakes: Single pistion, hydraulic disc

    Park Brake: Foot-pedal activated, mechanical disc
  • Body & Tires
      DIESEL
    Body Material:
    GE Geloy high-impact, scratch-resistant, injection-molded color

    Tires: All-terrain, 25 x 10.5 - 12, 4-ply
  • Dimensions & Weights
      DIESEL
    Overall Length: 121 in. (307 cm)

    Overal Width::
    58.5 in. (148.5 cm)

    Overall Height:      82.3 in. (209 cm)

    Wheelbase:
    81.5 in (207 cm)

    Ground Clearance:     7.3 in (18.5 cm)

    Vehicle Weight: 1,710 lbs (776 kg)

    Cargo Box (LxWxH): 48.0 x 49.8 x 10.9 in (122 x 128 x 28 cm)

    Cargo Box Payload: 800 lbs (363 kg)

    Total Payload: 1,200 lbs (544 kg))

    Towing Capacity: 2,000 lbs (907.2 kg)
  • Warranty
      DIESEL
    Engine: 2-year or 2,000-hour limited warranty

    Vehicle: 1-year or 1,000-hour limited warranty

LOCATE
A DEALER

Contact your nearest Club Car Authorized Dealer.
