FEATURES
CUSTOMIZATION
Your car can be built to your specifications and preferences with completely customizable options including color, seats, wheels, windshields, canopies, and everything in between, there are hundreds of ways to personalize your Onward.

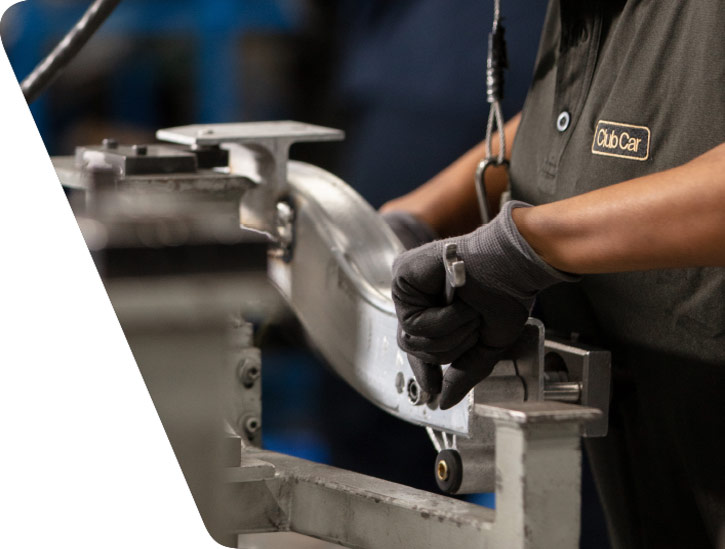

DURABILITY
As one of the only personal transportation vehicles constructed from an aluminum frame, the Onward is uniquely resistant to the elements. Plus, our metal flake paint and UV-tested components are specially formulated to resist fading.

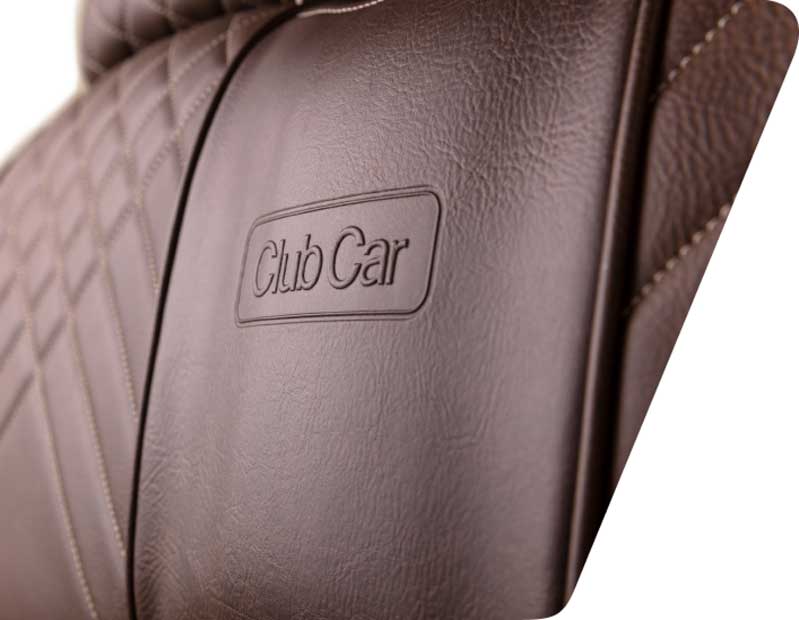

COMFORT
Feel the difference in Club Car performance. Unique style, comfort grip, and enough leg room to enjoy your ride and driving experience.
STABILITY / HANDLING
On select Onward® models, an exclusive stability bar under the axle minimizes lateral wheelbase movement for greater confidence during turns.

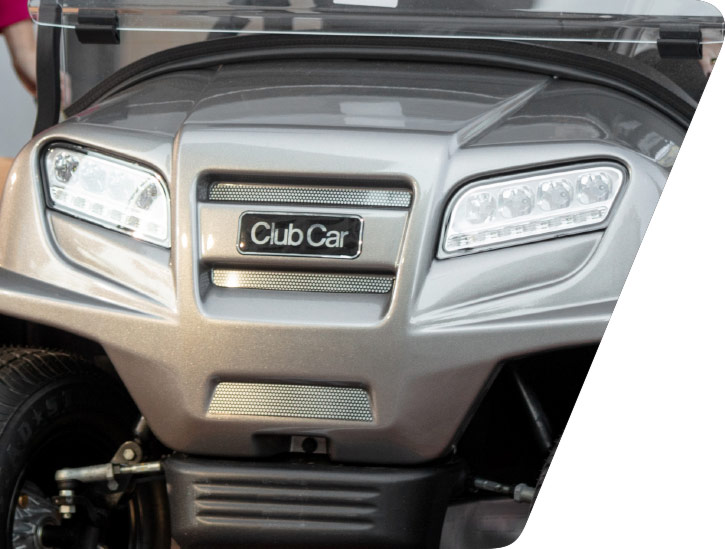

LIGHT UP YOUR ADVENTURE
Standard LED headlights, turn signals, and running lamps light your drive, make you more visible to traffic, and help to keep the fun going after sundown.

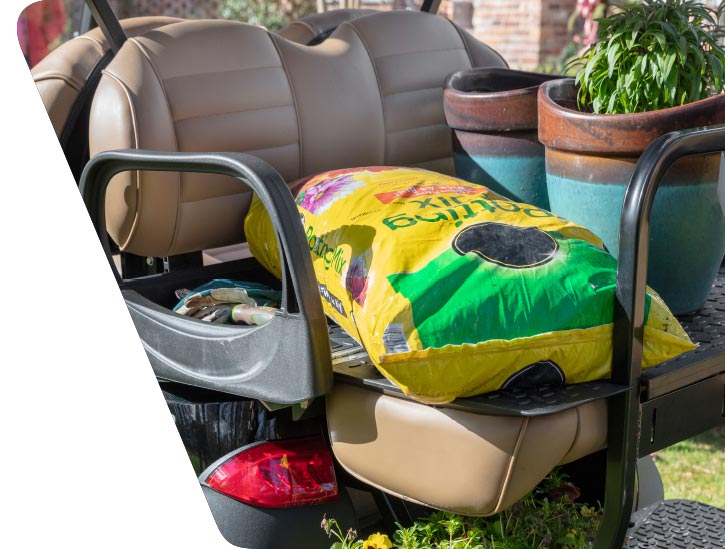

REAR FLIP SEAT
Room for four to enjoy the ride. The rear seat also flips out to reveal a rugged bed texture and space for moving your favorite gear. Engineered products that work hard to make everyday life better.

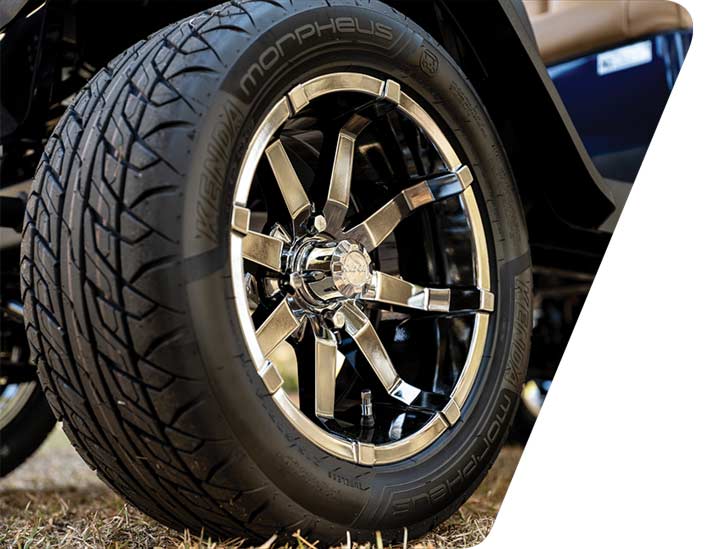

SMOOTH RIDE
Our new Morpheus tires are smooth and quiet. With a sleeker tread, the Morpheus tire is perfect for fragile golf turf and neighborhood roads.
PREMIUM POWER OPTIONS
POWER. TECHNOLOGY.
AC DRIVE.
- Our high-performance vehicle provides you with impressive torque and acceleration, with smart technology that will assist you in making sure your vehicle is always healthy and ready to drive.
- Integrated power management allows you to worry less about the life of your battery and focus more on your next adventure.
- With multiple acceleration modes available, your dealer will configure the Onward HP to the experience you’re looking for.
ONWARD HP LI-ION.
- High-powered motor and electronic controller improve hill-climbing speed, performance, torque, and efficiency.
- Maintenance-free battery with six-year warranty for added peace of mind.
- Three dealer-programmed drive modes for personalized performance. Choose between Econ, Normal, and Sport modes at the time of purchase.

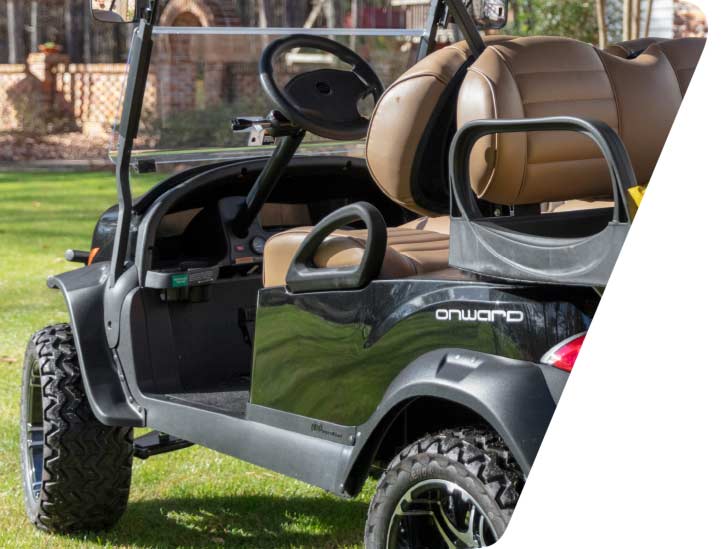

MAKE IT YOURS
Your Onward® is completely customizable. Choose premium colors, seats, accessories, and wheels to make your golf cart feel totally unique.
参数
ONWARD 加高型 4 座
-
动力
电动车辆 HP HP LITHIUM 汽油车辆 发动机
不适用 375 Amp DC
Motor Controller375 Amp DC
Motor Controller429 cc Kohler, Overhead Valve (OHV) with EFI 功率 3.3 hp (2.4 kW) 额定功率；
峰值功率 13 hp (9.6 kW)22.4 hp (16.5 kW) Peak 29 hp (21.4 kW) Peak 14.0 hp (10.3 kW)
（额定值，3600 RPM 时），符合 SAE J1940电池
(6) 个 8 伏特 (6) 个 8 伏特 58V Lithium-Ion (1) 一个 12 伏特 充电器
E.R.I.C. 自动、48 伏；通过 UL 和 CSA 认证 E.R.I.C. 自动、48 伏；通过 UL 和 CSA 认证 48V 650W HF Li-Ion
(Shelf / onboard);
48V 900W HF Li-Ion
(Shelf only)不适用 速度
19 mph (30 kph) 19 mph (30 kph) 19 mph (30 kph) 19 mph (30 kph) 燃油容量
不适用 不适用 不适用 6.0 gal (22.7 L) -
转向和悬挂
电动车辆/ HP/ HP LITHIUM 汽油车辆 转向
SportDrive™ — 自动补偿二级减速
螺旋 齿轮和齿条
SportDrive™ — 自动补偿二级减速
螺旋 齿轮和齿条前悬挂 独立宽距双 A 臂，
带液压减震器独立宽距双 A 臂，
带液压减震器后悬挂
（正在申请专利）带推力杆，
汽车级弹簧减震器（正在申请专利）带推力杆，
汽车级弹簧减震器 -
制动器
电动车辆/ HP/ HP LITHIUM 汽油车辆 制动器
自调节式、
后轮机械鼓刹
自调节式、
后轮机械鼓刹驻车制动器 脚踏式，
3 位置脚踏式，
3 位置 -
车身与轮胎
电动车辆/ HP/ HP LITHIUM 汽油车辆 车身和面饰
前： 带油漆 TPO；
后： 带油漆 Surlyn
前： 带油漆 TPO；
后： 带油漆 Surlyn
轮胎 22 x 10 - 10，无内胎
22 x 10 - 10，无内胎
LxWxH
114 x 49 1/2 x 80 1/2
114 x 49 1/2 x 80 1/2
轴距
67 1/2 inches
67 1/2 inches
离地距离
6 3/8 inches
6 3/8 inches
前后轮距
前/后： 40 3/4/39 1/2
前/后： 40 3/4/39 1/2
全车重量
1125 lb/ 1125 lb/ 895 lb
875 lb
框架类型
AlumiCore™ — 梯形
铝箱型梁AlumiCore™ — 梯形
铝箱型梁
-
Power
ELECTRIC HP HP LITHIUM GAS Motor/ Engine
250 Amp DC
Motor Controller375 Amp DC
Motor Controller375 Amp DC
Motor Controller429 cc Kohler, Overhead Valve (OHV) with EFI Horsepower 3.3 hp (2.4 kW) rated;
Peak 13 hp (9.6 kW)22.4 hp (16.5 kW) Peak 29 hp (21.4 kW) Peak 14.0 hp (10.3 kW)
rated @ 3600 RPM per SAE J1940Batteries
(6) 8-volt (6) 8-volt 58V Lithium-Ion (1) 12-volt (1) Charger
E.R.I.C. Automatic, 48-volt;
UL and CSA listedE.R.I.C. Automatic, 48-volt;
UL and CSA listed48V 650W HF Li-Ion
(Shelf / onboard);
48V 900W HF Li-Ion
(Shelf only)N/A Speed Range
19 mph (30 kph) 19 mph (30 kph) 19 mph (30 kph) 19 mph (30 kph) Fuel Capacity
N/A N/A N/A 6.0 gal (22.7 L) -
Steering & Suspension
ELECTRIC/ HP/ HP LITHIUM GAS Steering
SportDrive™ — Self-compensating double reduction helical rack & pinion
SportDrive™ — Self-compensating double reduction helical rack & pinion Front Suspension Independent A-arms with Hydraulic shocks Independent A-arms with Hydraulic shocks Rear Suspension
Patent pending w/ Track Bar and Automotive Grade Jounce Bumpers Patent pending w/ Track Bar and Automotive Grade Jounce Bumpers -
Brakes
ELECTRIC/ HP/ HP LITHIUM GAS Brakes
Self-adjusting, rear wheel mechanical drum
Self-adjusting, rear wheel mechanical drum Park Brake Foot actuated, 3-position Foot actuated, 3-position -
Body & Tires
ELECTRIC/ HP/ HP LITHIUM GAS Body and Finish
Front: Painted TPO;
Rear: Painted Surlyn
Front: Painted TPO;
Rear: Painted Surlyn
Tires 22 x 10 - 10 Tubeless
22 x 10 - 10 Tubeless
LxWxH
114 x 49 1/2 x 80 1/2
114 x 49 1/2 x 80 1/2
Wheelbase
67 1/2 inches
67 1/2 inches
Ground Clearance
6 3/8 inches
6 3/8 inches
Tread-Front and
Rear
Front/Rear: 40 3/4/39 1/2
Front/Rear: 40 3/4/39 1/2
Total Vehicle Weight
1125 lb/ 1125 lb/ 895 lb
875 lb
Frame Type
AlumiCore™ — Ladder-style
aluminum box beamAlumiCore™ — Ladder-style
aluminum box beam
