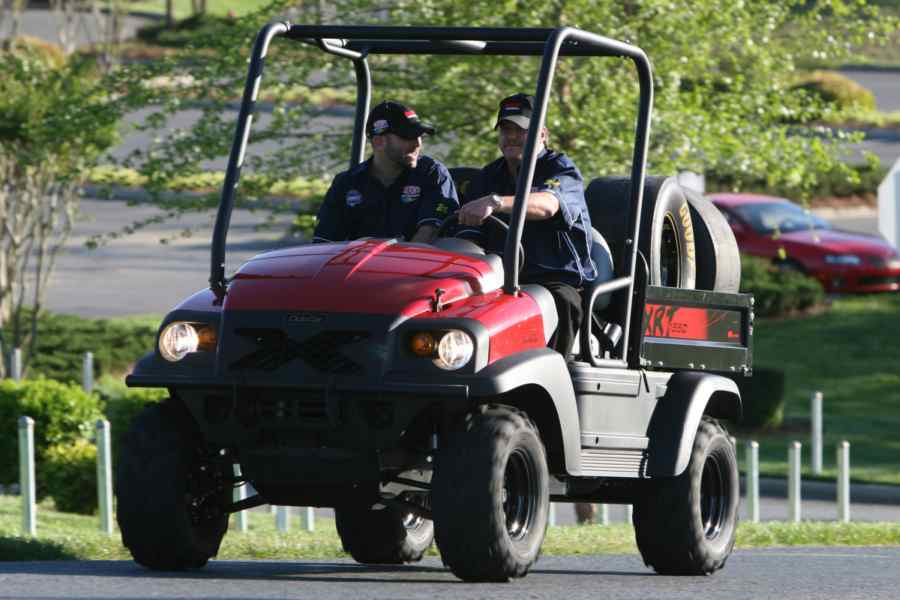

XRT1550

Built from the ground up to withstand the punishment of rough terrain, the XRT1550 is designed to thrive in even the toughest conditions. From the lightweight, aircraft-grade aluminum frame to the four-wheel, hydraulic disc brakes, these all terrain vehicle exude confidence and quality.

And you won’t have to sacrifice comfort, either, thanks to our exclusive 13-position adjustable driver's seat with a retractable seat belt and a front suspension with coil-over shocks that will enhance your ride and reduce tire wear.


Features

IntelliTrak™ Automatic All-Wheel-Drive

Working on rough terrain is easy with our automatic all-wheel drive system, which senses the ground you're on and shifts gears as needed. With other vehicles, drivers must stop to engage the locking differential. But with IntelliTrak, just select "forward or "reverse" and the system does the rest.

xrt15503



XRT Utility Vehicles are Built Tough

XRT utility vehicles are built for extreme expectations. Club Car is known for our rich heritage of well-engineered compact vehicles. No matter how extreme the expectation, chances are we have a vehicle that gets the job done. Whether it's doing chores on the farm, hunting in the rough, mountainous terrain or even transporting our military, XRT utility vehicles are built to exceed extreme expectations.



Storage Cowl

Increase your carrying capacity with a custom storage cowl from Club Car, designed to hold up to 25 pounds of equipment. Your extra gear will be safe and secure under the hood, no matter the terrain or setting.

5A0W1975_StorageCowl

Specifications

spec2
  Gasoline Diesel
MSRP* starting at $10,899 $12,469
Engine 20.1 hp (15 kW) 675cc air-cooled Kawasaki 20 hp (15 kW) 719cc, liquid-cooled Kubota
RPMs 3400 per SAE J1349 3600 rpm per SAE J1995
Drive System 4x4, IntelliTrak™ Full-time Automatic 4x4, IntelliTrak™ Full-time Automatic
Electrical System 12-volt, 500 cca 12-volt, 500 cca
Steering Ackerman geometry — Self-adjusting rack and pinion Ackerman geometry — Self-adjusting rack and pinion
Front Suspension Independent double A-arms with coil-over shocks Independent double A-arms with coil-over shocks
Rear Suspension Heavy-duty, exclusive 4-link Heavy-duty, exclusive 4-link
Brakes 4-wheel hydraulic disc 4-wheel hydraulic disc
Chassis Rustproof, automotive-style aluminum box frame Rustproof, automotive-style aluminum box frame
Tires Standard Mud (MT) 25 x 11 – 12 in (635 x 279 – 305 mm)Optional All-terrain (AT) 25 x 10.5 – 12 in (635 x 267 – 305 mm) Standard Mud (MT) 25 x 11 – 12 in (635 x 279 – 305 mm)Optional All-terrain (AT) 25 x 10.5 – 12 in (635 x 267 – 305 mm)
Dash Instrumentation Fuel/hour gauge, low oil warning light Fuel/hour gauge, low oil and coolant high temperature warning lights
Halogen Headlights Yes Yes
Overall L x W x H 122 x 59 x 82 in (310 x 149 x 209 cm) 122 x 59 x 82 in (310 x 149 x 209 cm)
Wheelbase 82 in (207 cm) 82 in (207 cm)
Ground Clearance 8 in (21 cm) 8 in (21 cm)
Tire Tread Front and Rear 49 in (124 cm) Front and Rear 49 in (124 cm)
Weight 1450 lb (658 kg) 1450 lb (658 kg)
Forward Speed  Up to 25 mph (40 kph)  Up to 25 mph (40 kph)
Load Bed Size 48 x 50 x 11 in (122 x 127 x 28 cm) 48 x 50 x 11 in (122 x 127 x 28 cm)
Payload Capacity 800 lb (363 kg) / 1050 lb (476 kg) Upgrade 800 lb (363 kg) / 1050 lb (476 kg) Upgrade
Vehicle Capacity 1200 lb (544 kg) / 1450 lb (658 kg) Upgrade 1200 lb (544 kg) / 1450 lb (658 kg) Upgrade
Seating 2 2
Fuel Gasoline, 6.5 gal (24.6 L) external fuel fill Diesel, 6.5 gal (24.6 L) external fuel fill
ROPS (Roll-Over Protective Structure) 4-point certified system with retractable seat belts 4-point certified system with retractable seat belts


Manuals

manual-icon-key

XRT 1550 Owner's Manual

Download your owner’s manual for free. If you would like a hard copy, please contact your local Authorized Club Car Dealer.

Download manual.
